E5 pro

The FLIR E5 Pro is a rugged point-and-shoot thermal

E5 pro

The FLIR E5 Pro is a rugged point-and-shoot thermal camera that can help you work more efficiently than ever before in building surveys, HVAC, automotive, and general electrical and mechanical inspections. Locate and diagnose problems quickly with 160 × 120 thermal resolution (19,200 pixels) and vibrant thermal imagery supported by FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement. Featuring a 3.5-inch, 640 × 480 touchscreen, the E5 Pro simplifies your workflow.

Get Protected, Connected, and Trained with FLIR Ex Pro cameras!

MSX® Image Enhancement

All Ex-Series thermal cameras feature FLIR’s unique Multi Spectral Dynamic Imaging (MSX), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately in the camera’s LCD.

With MSX

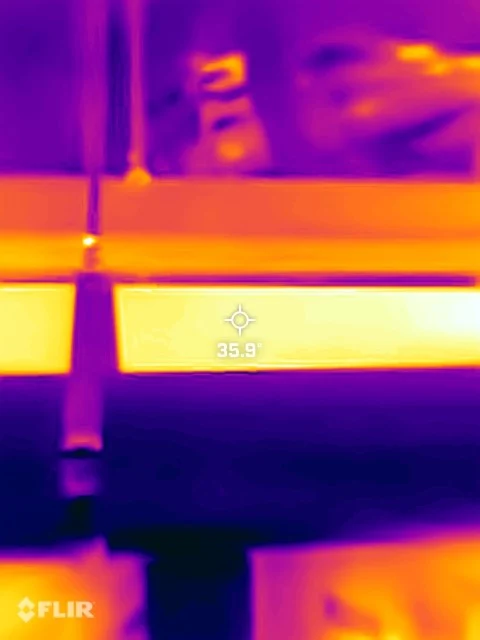

Without MSX

Save Time With 1-Touch Level/Span

1-Touch Level/Span allows you to choose a small area of focus in a thermal image – with one touch of the screen – and the camera will auto-adjust the level and span based on the thermal contrast at that spot in the image. The result: time saved on manual adjustments.

NFPA 70B Compliant - Delta T Measurement Tools

With NFPA 70B compliant Delta T measurement tools now built into Ex-Series cameras (Box1 Max – Spot1 Max, and Box1 Max – Atmosphere Temperature), you can save a lot of time by calculating ∆T on the camera without any additional steps.

Efficient Inspections at Your Fingertips

Add notes from the touchscreen

Featuring a 3.5-inch touchscreen, the FLIR E8 Pro allows you to add detailed annotations to images and save them to the cloud, making it simple to create reports.

Professional Reports that Help Your Customer and Your Business

The right image analysis and reporting software can greatly improve your business by making it easier for your customers to understand the problem and feel confident that you fixed it.

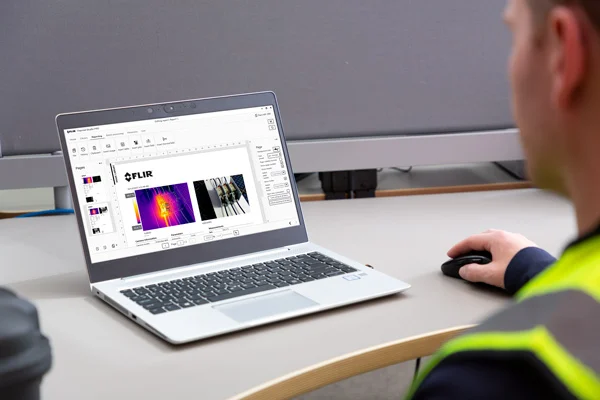

The FLIR Ignite cloud service allows you to back up images directly to the cloud, organize and edit files, and create simple reports. And for advanced editing and reporting, there’s FLIR Thermal Studio Suite: a desktop software offering batch processing, feature-rich measurement tools, and customized reports.

Never Worry About Your Camera Performance Again

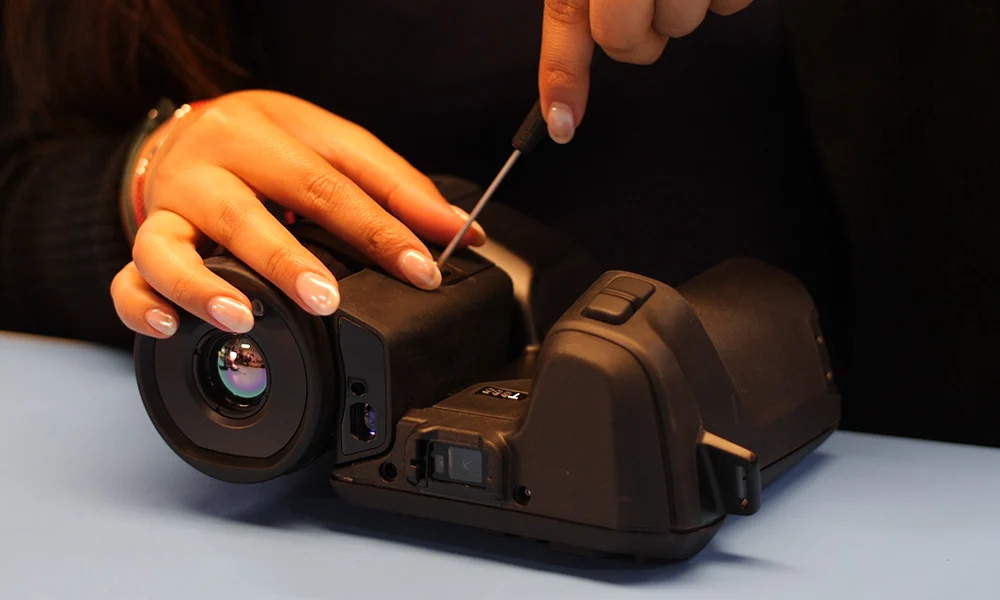

Keep your camera going strong with FLIR CARE and FLIR PROTECT. FLIR CARE provides world-class calibration with performance verification and traceable calibration adjustment services that ensure your thermal data is always accurate. FLIR PROTECT extended warranty and service packages provide a full three years of coverage beyond the respective camera’s factory warranty. FLIR PROTECT customers can also receive a bundled calibration service, discounts on additional services, and options for fast-delivered loaner cameras.

Specifications

Thermal Resolution	160×120 pixels
Thermal Sensitivity	<0.06˚C at 30˚C
Field of view (FOV)	33˚ x 25˚
Spatial resolution (IFOV)	3.7 mrad
Display	3.5 in. 640 x 480 color LCD
Storage Media	Internal memory
Focus	Focus free
Image Frequency	9 Hz
Spectral Range	7.5 µm to 13 µm
